The DbgHelpBrowser user interface is shown below.









The user interface consists of a main grid showing all main datatypes and functions in the debug help.



Below is a display for function parameters, function local variables, line numbers and a source code display for viewing the source code of any function or variable that is selected.



Selecting any item in the grid populates the lower grids and source code display as appropriate.



Querying any value will select the nearest item in the main grid and populate the other displays as appropriate.



Some basic filtering functionality is also provided.





PDB Information







The PDB information shows you the symbol name, calling convention, symbol address, symbol size, symbol type, and associated debugging flags and the filename and line number for the symbol.



You can sort the data by clicking no the column header and clicking again to reverse the direction of the sort.



If you select any item in the grid the lower grids and source code display are populated with data as appropriate.



If you right click any item a context is displayed which will allow you to perform a symbol relative query.









Parameters







The parameters section lists all parameters for the selected symbol. For each parameter, the name, tag type, address, scope, size and flags are displayed.





Local Variables







The parameters section lists all local variables for the selected symbol. For each parameter, the name, tag type, address, scope, size and flags are displayed.





Line Numbers







The line numbers section lists each line number, the address of that line and the offset of that line from the start of the owning function. Note that offsets can be negative as well as positive depending on how the compiler did it's work.





Source Code







The source code section displays the source code, highlights the selected line and displays information relating to filename, line number, function and address.





Filters







The filters section allows you to filter data in two ways:



Tags

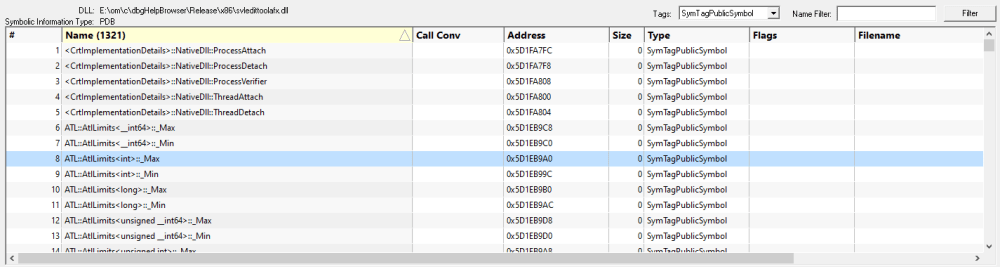

Filtering by tag allows you to reduce the amount of data to just the symbols that have the tag you choose. Available tags are:

 All tags

 Executable code

 Data

 SymTagNull

 SymTagExe

 SymTagCompiland

 SymTagCompilandDetails

 SymTagCompilandEnv

 SymTagFunction

 SymTagBlock

 SymTagData

 SymTagAnnotation

 SymTagLabel

 SymTagPublicSymbol

 SymTagUDT

 SymTagEnum

 SymTagFunctionType

 SymTagPointerType

 SymTagArrayType

 SymTagBaseType

 SymTagTypedef

 SymTagBaseClass

 SymTagFriend

 SymTagFunctionArgType

 SymTagFuncDebugStart

 SymTagFuncDebugEnd

 SymTagUsingNamespace

 SymTagVTableShape

 SymTagVTable

 SymTagCustom

 SymTagThunk

 SymTagCustomType

 SymTagManagedType

 SymTagDimension







Symbol Name



Filtering by symbol name allows you to easily find a particular symbol. This is very useful when wanting to decode a crash address that has been provided as relative to a symbol (symbol + offset).







Clipboard







Options on the context menu to allow you to copy the following information to the clipboard:



•Filename and line number.                e:\om\c\svledittool\edittool\undotext.cpp 64

•Symbol, filename and line number.        UndoText::doUndo e:\om\c\svledittool\edittool\undotext.cpp 64

•All symbol details.                        30 UndoText::doUndo CV_CALL_THISCALL 0x6C168230 540 SymTagFunction  e:\om\c\svledittool\edittool\undotext.cpp 64





Highlighting







Options on the context menu allow you to highlight multiple symbols, and to remove highlights.



Highlighting can useful when you want to easily mark a symbol for future reference. Here's an example image showing some symbols that have been highlighted.
