First run configuration



For new users of Coverage Validator, a configuration wizard appears the first time you run the application.



The wizard collects a few details about environment, tools, update requirements (for non-evaluation users) and ends with a short video tutorial.







User interface mode



After the introductory page, the wizard presents options for configuring the how the launch, inject and wait dialogs present information to you.









•Wizard mode guides you through the tasks in a linear fashion


•Dialog mode all options are contained in a single dialog

       Experienced users will find this mode quicker to use



These settings can be changed at any time via the User Interface Mode option on the Settings menu.





Symbol search path environment variables



The next page of the wizard presents options for using environment variables for symbol search paths when finding PDB symbols.



You don't have to choose any of these options as Coverage Validator will try to automatically determine symbol path information.





These environment settings can be changed at any time via the Configure Symbol Handling Environment Variables on the Symbol Server page of the Settings Dialog.





Symbol lookup



The next page of the wizard allows you to specify which IDE, Compiler or Linker you're using.



This is important as it affects how symbol lookup is performed. Visual Studio has various quirks in its history of symbol handling and we have to work around that.



The default settings are shown below, although the Visual Studio version may vary.





These lookup settings can be changed at any time on the Symbol Lookup page of the Settings Dialog.







Instrumentation details



The Instrumentation detail section of the wizard allows you to specify how lines are hooked and how many times a line visit is counted.





Two instrumentation settings affect how quickly the instrumented program will run:



•the hooking of very short lines



Most lines can be monitored using a normal line hooking technology. These hooks are fast but cannot be used for all lines.



Very short lines are hooked using breakpoint hooking technology which is very advanced but also incurs a serious performance penalty for each visit to that line.



•the counting of lines on every visit



Counting lines just once is quicker than doing it on every visit.



The instrumentation level lets you balance the detail of collected visit counts for every line against speed of execution.



•Incomplete but faster Short lines NOT counted. Lines counted once



•Incomplete but slower Short lines NOT counted. Lines counted every visit.



•Complete but faster Short lines counted. Lines counted once. (This is the recommended option)



•Complete but slower Short lines counted. Lines counted every visit.



See more about very short lines, and related caveats.



These instrumentation settings can be changed at any time on the Instrumentation Detail page of the Settings Dialog.





Software update credentials



The software updates page of the wizard is only shown to non-evaluation users.



You can configure your software update credentials within the application and where updates are downloaded to.





You can test the login details to ensure they are valid:



•Test login details click to check your entered details are valid (requires an internet connection)



Valid details will be confirmed:

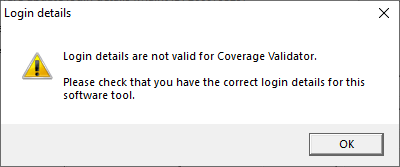

Invalid details may mean you entered credentials for another application in the Validator suite, or they could have been entered incorrectly.




You should have received the correct credentials when you purchased Coverage Validator.



If you experience problems, check with your system administrator or contact Software Verify.



These update credentials can be changed at any time from the Software Updates menu.





Software update download location



It’s important to be able to specify where software updates are downloaded to because of potential security risks that may arise from allowing the TMP directory to be executable.



We use the TMP directory as a default, but if you're not comfortable with that you can specify your preferred download directory. This allows you to set permissions for TMP to deny execute privileges if you wish.



An invalid directory, e.g. one that does not exist, will show text in red and will not be accepted until a valid folder is entered.



•Reset reverts the download location to the user's TMP directory



The default location is c:\users\[username]\AppData\Local\Temp



The download location can be changed at any time from the Software Updates menu.





Video overview of application



The final page of the wizard presents a short video overview of Coverage Validator.



The video has audio







More help is available via the Tutorials tab and the Help menu.



The video is also available on the product website. Visit https://www.softwareverify.com/products.php and find the product link for Coverage Validator.



•Finish closes the First Run Configuration dialog leaving the application ready to use
