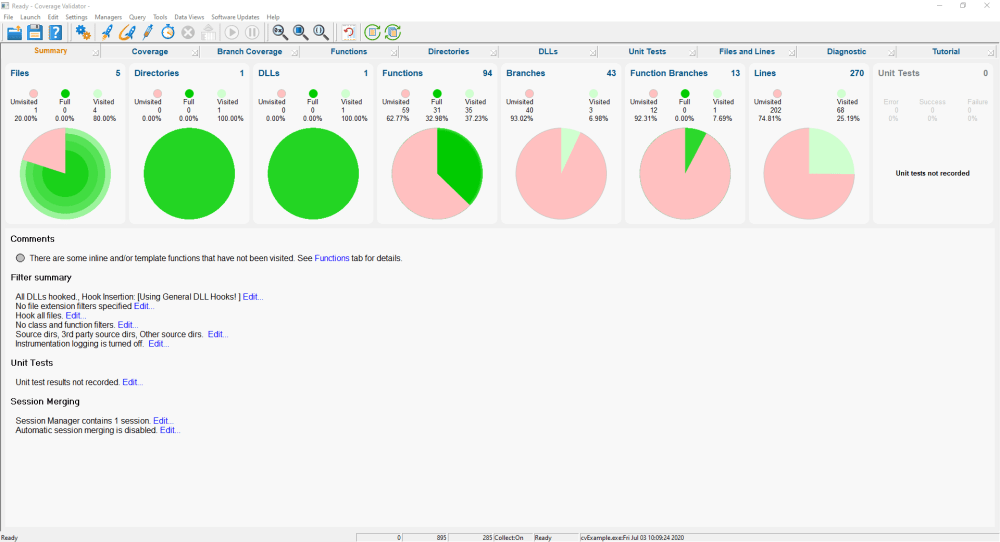

The Summary tab view displays a dashboard of high level information about the coverage of the current application.







The summary tab



The display shows various coverage statistics with percentages where appropriate.



Each dial summarises coverage of the different types of information found in the main tabs.



•Files (Coverage)

•Directories

•DLLs

•Functions

•Branches and Function Branches

•Lines



Clicking on the dials takes you to the corresponding main tab to explore in more detail.



Branches gets two dials, one for just branches (Branches) and one for functions that contain branches (Function Branches)





Understanding the dials

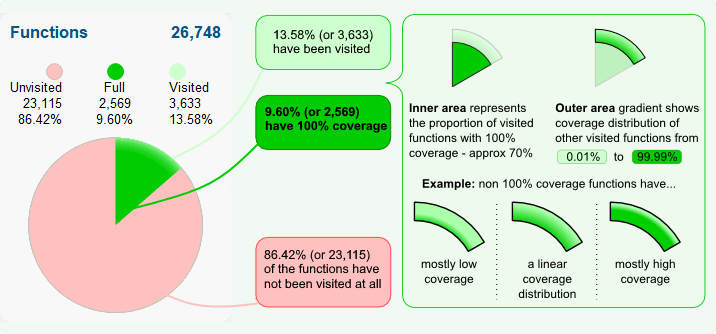

Each dial displays:



•numeric statistics on visited and unvisited items, and those items with 100% coverage


•the unvisited/visited information as angular data



•the 100% coverage as inner radial data


•the partial coverage distribution as outer radial data





Example:



The following dial summarises data on a total of 21,615 known functions in a complex target program







The radius of the inner area may grow or shrink as the target program runs, since the proportion of visited functions that have 100% coverage can go up or down.





Status summary area



Below the dials is a status area showing any comments or special notices related to the current session.



Underneath the comments you'll find the status of any filters, unit tests, or session merging.



Clicking Edit... or View... opens a dialog to edit or view the relevant settings.



In most cases the settings shown are identical to the relevant page of the global settings dialog.



Filter summary:





Session merging:
