Performance Validator Help

Navigation: The User Interface > Settings > Data Collection Settings > Filters

Class and Function Filters

Scroll Prev Top Next More

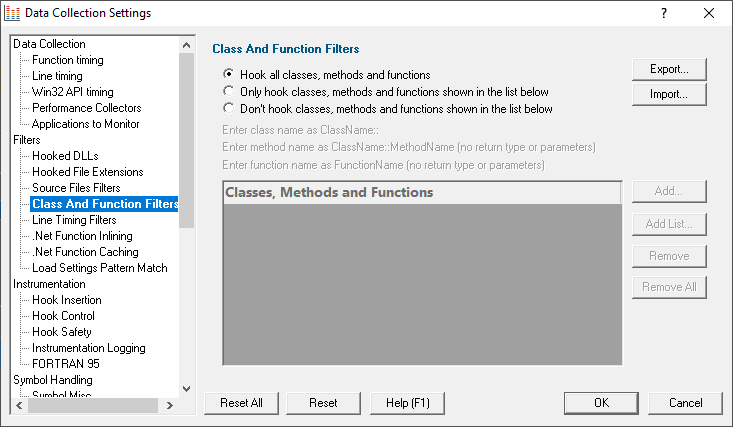

The Class And Function Filters page allows you to set specific classes, methods and functions to be included in, or excluded from, the hooking process.



class-function-settings





note These filters apply only to the DLLs and files that you have not already excluded via other filters.





Listing what to exclude or include



By default, Performance Validator will try to hook all classes, methods and functions in the hooked files, but you can choose to list only those which should be included or excluded.



Hook all... instructionStep hook everything (the default)



Only hook ... instructionStep hook only the classes, methods and functions listed


Don't hook ... instructionStep hook everything except the classes, methods and functions listed




Managing the list



Choose from known methods:



Add... instructionStep shows the Class::Method Browser dialog below

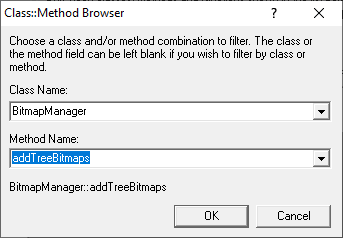

Type or choose a class and/or method from the pre-populated drop-down list of all functions:


settings-classandfunctionfilter-chooser

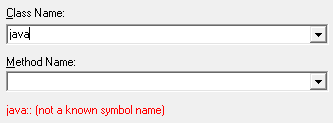

When typing an entry, you'll see a message at the bottom of the dialog if the symbol doesn't exist:



settings-classandfunctionfilter-chooser-err





Choose from known methods:



Add List... instructionStep shows the List of classes or functions dialog below



Enter any number of plain class::method or function names or just paste them in.



settings-classandfunctionfilter-chooserlist



noteThe list will not be validated against known functions. Do not include return types, brackets, parameters or other details.



Remove items as normal:



Remove instructionStep removes selected items in the list


Remove All instructionStep removes all items, clearing the list



Alternatively, press b_del to delete selected items, and b_ctrl + b_a to select all items in the list first.





Exporting and importing



Since the list can be quite complicated to set up, you can export the settings to a file and import them again later. This is useful when switching between different target applications.



Export... instructionStep choose or enter a filename instructionStep Save instructionStep outputs the filtered list to the file


Import... instructionStep navigate to an existing *.pvxc file instructionStep Open instructionStep loads the filtered list



note The exported file can be used with the -classAndFunctionFile command line option.





Reset All - Resets all global settings, not just those on the current page.





Reset - Resets the settings on the current page.
