Memory Validator Help

The .Net Memory tab displays .Net memory and .Net handle allocations that are still waiting to be garbage collected.



This display is very similar to the Native Memory tab, but it only displays .Net memory allocations and the context menu is a subset of the context menu on the Native Memory tab because some of the options don't apply to .Net memory/handle allocations.

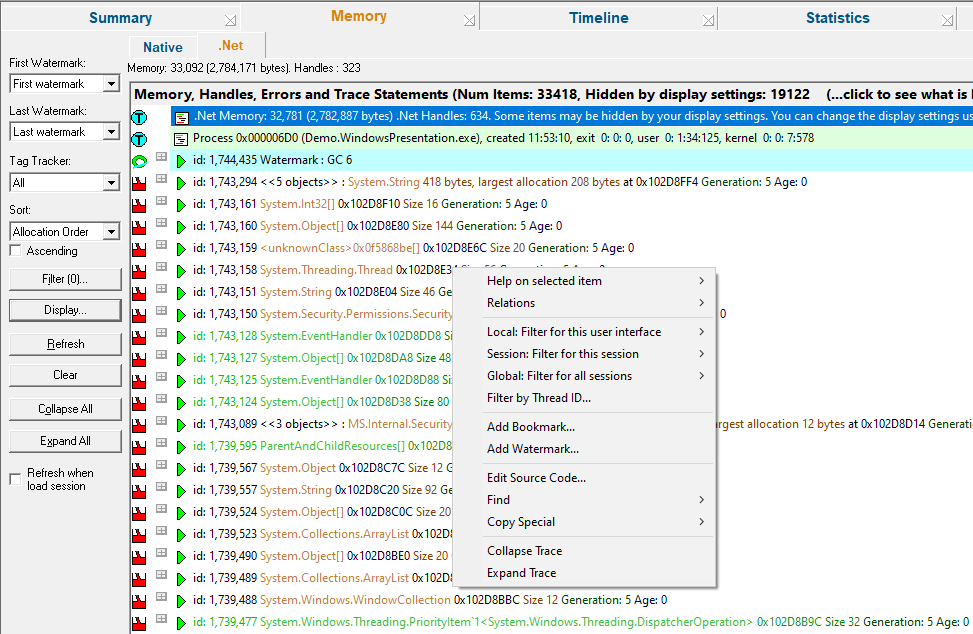

Interactive clickable imageRead on, or click a part of the image below to jump straight to the help for that area (the icons link to a different page).





dotnet-memory-tab-with-menu



Status Information



The very top line of the memory tab gives a brief summary of:



memory allocated and number of blocks

handles allocated



The status line is only updated when the Refresh button is pressed or when data is added to the display automatically.



More up-to-date information can be found on the Running Totals Dialog or the Types view.



This example shows a status line after the target application has exited (hence 0 bytes for current memory):



dotnet-memory-status-line2





Collected data



The main display shows the live collected data during or after the application running. Memory that has been allocated and then garbage collected is not shown.



note Initially no data will be displayed until the data is manually refreshed or the automatically updated with significant errors as they happen.



Each line has an icon at the left, indicating its type, and has an explanatory tooltip:



allocation-dotnet-type-symbol-tooltips



The text on each line indicates:



datatype (if known)

size

allocation address/handle value

source file and line number (if available) where the allocation occurred

optional event sequence id at the beginning of the line



There are two types of callstack representation.

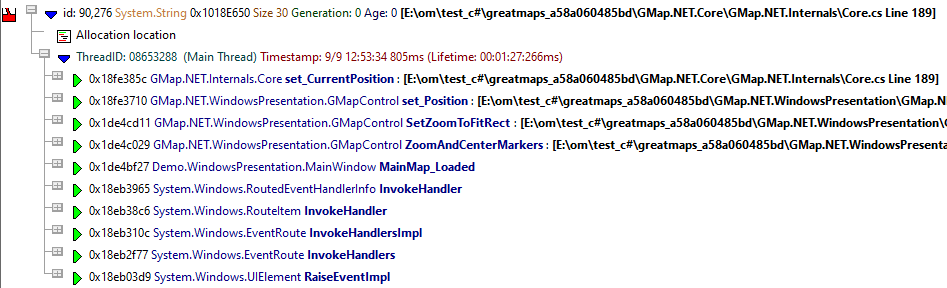

The first callstack representation is that of an object that has been allocated on a callstack that has never had any objects allocated on it that have been garbage collected.



callstackDotNetNotCollected



The second callstack representation is that of an object that has been allocated on a callstack that has had objects allocated on it garbage collected.



callstackDotNetCollected



This colouring is controlled by the Enhanced callstack colouring option on the Callstack settings of the settings dialog.





Controls



Most of the controls on the .Net Memory tab work identically to the controls on the Native Memory tab. The filters are shared between the two tabs.

One thing works differently is the Display Settings.



Display... instructionStep shows the .Net Memory Tab Display Settings dialog to set the types of data and messages displayed in the data view





Memory view popup menuright_mouse_button

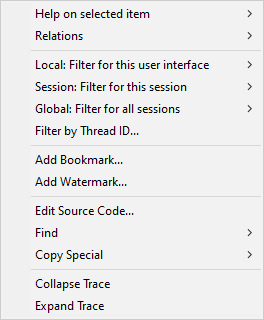

The following popup menu is available over the data area. This menu is a subset of the menu on the Native Memory tab.
The descriptions for this menu are in the Native Memory tab.



Interactive clickable imageClick on any part of the menu to jump straight to the topic below:





dotnet-memory-tab-menu
